Less is more? Look at this: One tube for both channels and enough for a full power amp. As the similar 4-675 this amp uses just one ELL80. This way input sensitivity is not too high, but the amp will work with most preamps. No input tubes means: NO COUPLING CAP! The output power is 1 watt (undistorted) into 4 or 8 Ohms. The maximum output is 2 watts, but with noticeable distortion. The sound? Niiiiiiiiiiiiiiice. Really. Better than any Telefunken S80/81/82. Less is more. Yes. At least sometimes...
What you should do for HiFi use: 1. Remove the capacitor from the plates to B+ (see picture) for correct high frequency response. 2. Add speaker connectors to the output taps of the output transformer (black-yellow and black-red) 3. If you need more bass add a 10uF from the feedback cable (blue) to ground. |
||||||||
|
|
|||||||||
) |
|||||||||
|
Original radio console |
|||||||||
) |
|
||||||||
) |
|
||||||||
|
original frequency response |
frequency response whithout cap | ||||||||
) |
|
||||||||
|
Original radio console (back) |

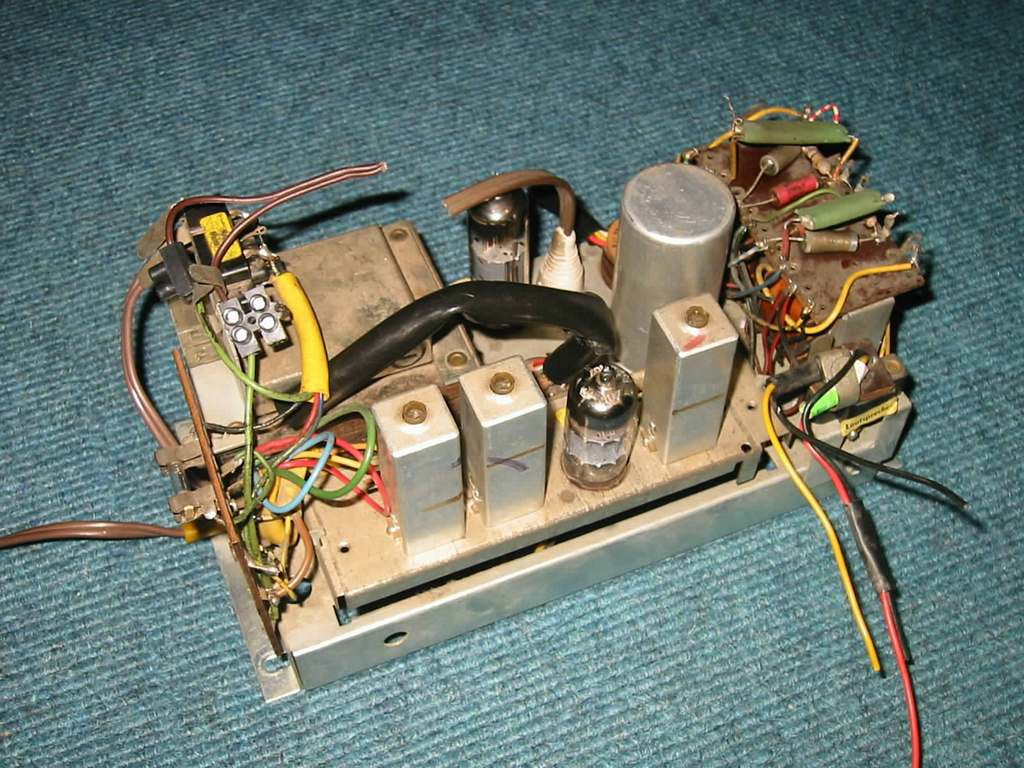

Original radio console (inside) | ||||||||
) |
|
||||||||

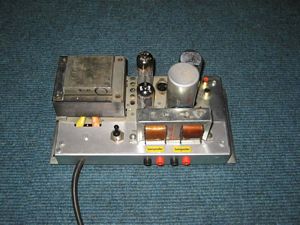

| Modified amp with 6SL7 and EZ80 | |||||||||

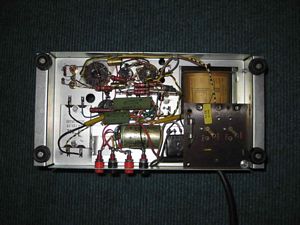

| new banana output jacks | |||||||||
) |
|
||||||||
|

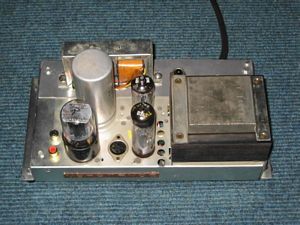

additional driver and rectifier tube |
|||||||||
) |
|
||||||||

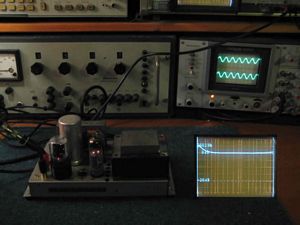

| frequency response of modified amp | |||||||||
) |
|
||||||||
|
|
|||||||||
 |
|
|
|
||||||
)
)
)
)
)
)
)
