Klangfilm KLV Eurodyn Rack
amps |
|
|
|
|
|
|
|
|
|
|
The
amps shown on this site are the models which were originally designed to
work in the Eurodyn system (so no Euronor amps listed here) and having KLV
type numbers (so no 6SELA amps though they also showed up in some Eurodyn
racks).
The
KL V401a (or 401b) was not a real Eurodyn rack amp, as it was still built on
a die cast frame as the pre WWII models. |
|
|
|
|
|
|
|
|
|
|
Model |
Picture |
Since |
Output tubes |
Drivers |
Comment |
|
![](../../Common%20Pix/spacer.gif) |
KLV401a
KLV401b |
![Klangfilm Siemens Eurodyn tube amp KLV V502 502 402 403 408a 410 409 551](KLV401/KLV401-1_pre.jpg) |
1945 |
EL12 PP
EL12/375 PP
F2a11 PP
(in later units) |
EF12k
EF12k
EF12k
EF12k |
Very nice amp of incredible quality. Only first class parts
were implied. MP Capacitors only. EL12 tubes in triode connection. RGN 2504
mesh plate rectifier! |
|
![](../../Common%20Pix/spacer.gif) |

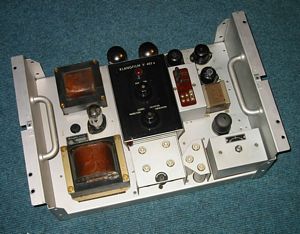

KLV402
KLV403a |
![Klangfilm Siemens Eurodyn tube amp KLV V502 502 402 403 408a 410 409 551](KLV402/KLV402-01_pre.jpg) |
1950 |
F2a11 PP |
EF12k
EF12k
EF12k
EF12k |
Same quality and pretty similar to the above amp. F2a11 in triode
connection. Early amps use EZ12 rectifiers and later amps GZ34s.
Here is the
Tech Site !!! |
|
![](../../Common%20Pix/spacer.gif) |
KLV203
KLV204
KLV204a |
![Klangfilm Siemens Eurodyn tube amp KLV V502 502 402 403 408a 410 409 551](KLV204/KLV204_pre.jpg) |
1954 |
F2a11 SE |
EF12k
EF12k
|
Emergency amp for above one. F2A11 single ended, but used as tetrode.
Enough power for most speakers. Great sound! Later version with
input transformer. |
|
![](../../Common%20Pix/spacer.gif) |
KLV502 |
![Klangfilm Siemens Eurodyn tube amp KLV V502 502 402 403 408a 410 409 551](KLV502/KLV502-3.jpg) |
1954 |
EL34 PP |
ECC40
ECC40
ECC40 |
Great and outstanding (see above). Same quality (MP caps a.s.o.) as
KLV402a, but superior driver stage. More versatile tubes. |
|
![](../../Common%20Pix/spacer.gif) |
KLV408
KLV408a |
![Klangfilm Siemens Eurodyn tube amp KLV V502 502 402 403 408a 410 409 551](KLV408/KLV408-1_pre.jpg) |
1955 |
EL34 PP |
EF40 ECC83 |
Though not having MP caps and a smaller OPT, still a nice
amp. Also used as reserve amp for KLV502. Early units (408) still had a
choke in the power supply. |
|
![](../../Common%20Pix/spacer.gif) |
KLV410 |
|
1958 |
EL84 PP |
EF40 ECC83 |
Emergency amp for KLV502. Nice, but no tube rectifier. Pretty close
to the Siemens Sf. V6.7 portable amp. |
|
![](../../Common%20Pix/spacer.gif) |
KLV551 |
![Siemens Klangfilm 6S ELA 6SELA 2427 2733 2735 2754 2803 2805 tube amp EL34](../Power/6SELA2754/27541.jpg) |
195? |
EL34 PP |
EF40
EF40 |
Good amp used in installations with multiple speaker systems
(with 100V ELA line). No low impedance output. Conversion should be
done with new OPT. |
|
|
|
